Oil-free rotary screw compressor
ZR/ZT 110-275(FF) & ZR/ZT 132-315 VSD(FF)
Setting the standard in energy efficiency, safety and reliability
The shortest route to superior productivity is to minimize operational cost while maintaining an uninterrupted supply of the right quality of air.The Atlas Copco Z compressor series is focused on effectively saving energy, ensuring product safety –only oil-free machines exclude contamination risks for 100% – and guaranteeing the utmost reliability around the clock. And not just today, but day after day, year after year, with minimal maintenance cost, few service interventions and long overhaul intervals.
100% certified oil-free air
Atlas Copco is renowned for designing and manufacturing some of the most durable oil-free screw compressors. The ZR/ZT high-end rotary screw compressor comes out of this strong tradition. Ideal for industries where high-quality oil-free air is key, the ZR/ZT offers the highest reliability and safety in combination with low energy costs.
Food & beverage
• 100% pure, clean, oil-free air for all kinds of applications
(e.g. fermentation, packaging, aeration, transportation,filling & capping, cleaning, instrument air).
• ISO 8573-1 CLASS 0 (2010) certification to avoid compromising the purity of your end product and ensure zero risk of contamination.
Textiles
• Easy and quick installation.
• A completely, fully integrated, ready-to-use solution.
Oil & gas
• Years of experience in providing compressed air for the oil & gas industry.
• 100% oil-free compressed air for control/instrument air or buffer air.
• Strong global support network to provide 24/7 assistance.
Power plants
• Ideal for applications such as flue gas desulphurization, oxidation air, and fluidized beds.
• Continuous operation.

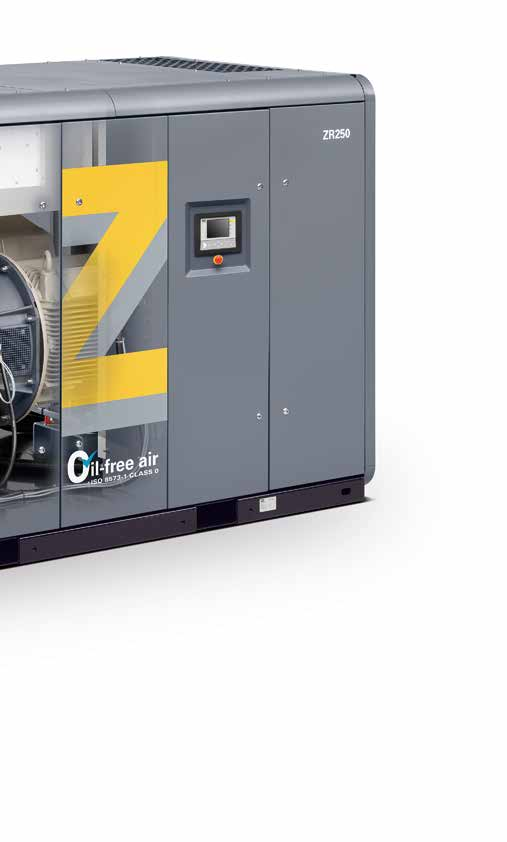

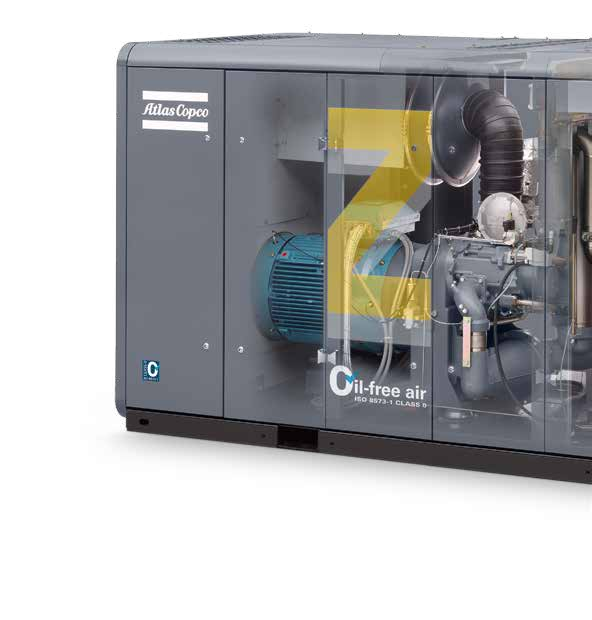

Proven Z technology:ZR (water-cooled) version
1.Throttle valve with load/unload regulation
• No external air supply required.
• Mechanical interlock of inlet and blow-off valve.
• Low unload power.
2.World-class oil-free compression element
• Unique Z seal design guarantees 100% certified oil-free air.
• Atlas Copco superior rotor coating for high efficiency and durability.
• Cooling jackets.
3.High efficiency coolers and water separator
• Corrosion resistant stainless steel tubing*.
• Highly reliable robot welding; no leakages*.
• Aluminium star insert increases heat transfer*.
• Water separator with labyrinth design to efficiently separate the condensate from the compressed air.
• Low moisture carry-over protects downstream equipment.
* Only for ZR water-cooled versions.
4.Motor
• IP55 TEFC protection against dust and humidity.
• High efficiency fixed speed IE3 motor (equal to NEMA Premium).
5.Advanced Elektronikon®
• Large 5.7” sized color display available in 31 languages for optimal ease of use.
• Controls the main drive motor and regulates system pressure to maximize energy efficiency.

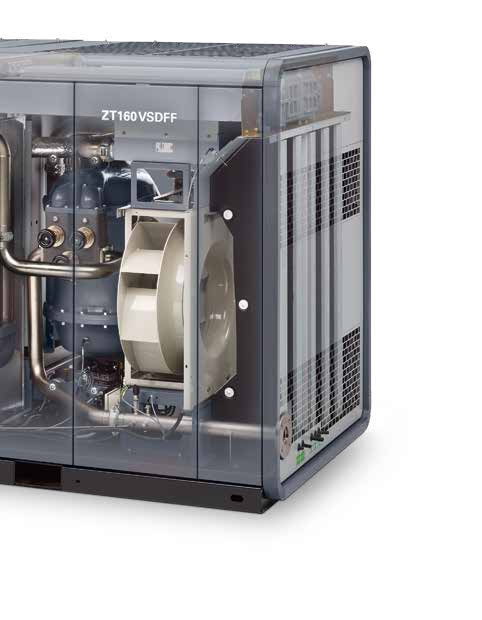

A complete Full Feature package:ZT (air-cooled) version
1.Silenced canopy
• Base frame with forklift slot.
• Fully packaged, easy to install.
• Easy ducting.
2.Efficient intake air filtration
• 2-stage dust removal system (99.9% for 3 micron).
• Low pressure drop.
• Efficient protection of the compressor.
• Minimum intake losses.
3.High-efficiency motor + VSD
• TEFC IP55 motor protects against dust and chemicals.
• Continuous operation under severe ambient temperature conditions.
• Full regulation between 30 to 100% of the maximum capacity.
4.Full Feature: IMD adsorption dryer
• Eliminates the moisture before it enters the air net.
• Ensuring a reliable process and a top quality end product.
• No external energy is needed to dry the air, resulting in high energy savings and no compressed air losses.
• Minimal pressure drop.

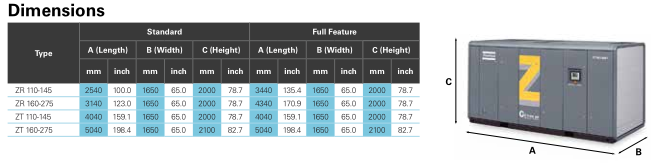

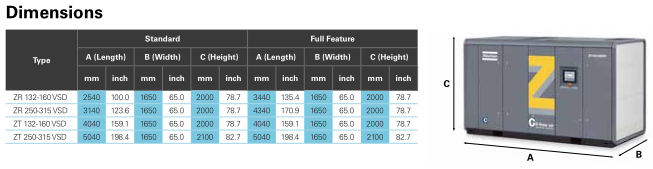

Technical specifications

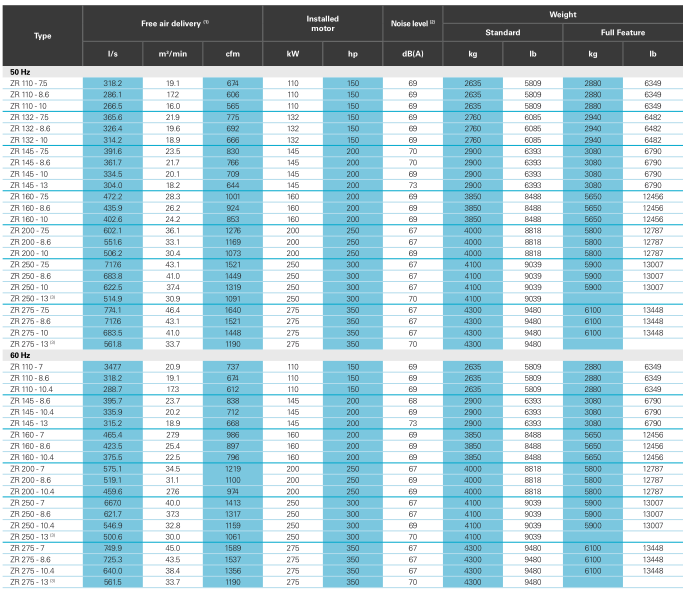

ZR 110-275(FF)
ZT 110-275(FF)
ZR 132-315 VSD(FF)

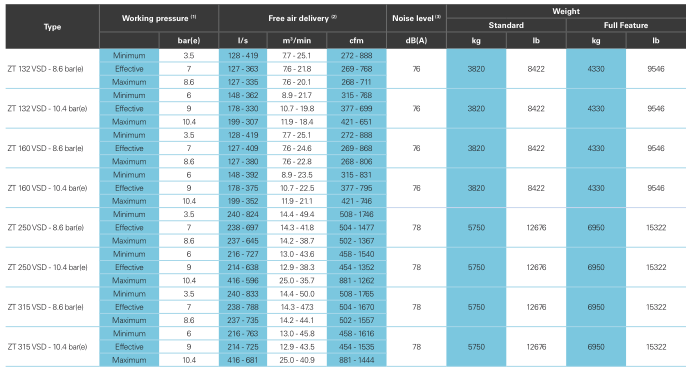

ZT 132-315 VSD(FF)
